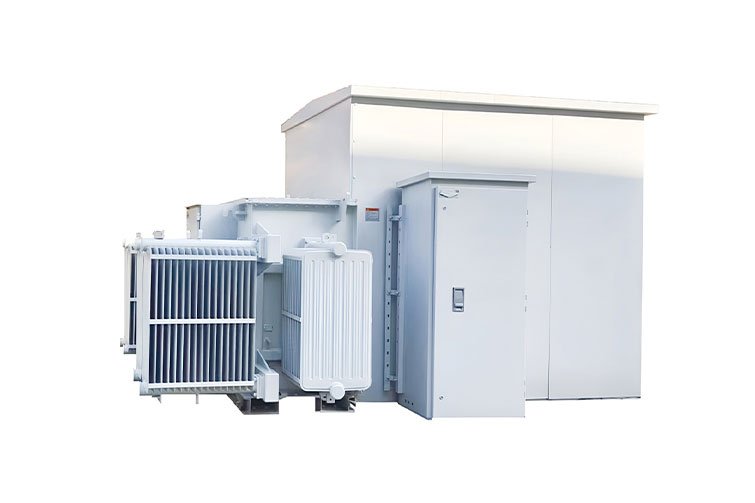

New energy transformers are essential components in the power distribution and transmission systems that integrate renewable energy sources such as solar, wind, and hydropower into the grid. They serve the crucial role of stepping up or stepping down voltage to match the needs of the grid or end-users while ensuring minimal energy loss and safe operation. Understanding their working principle is vital in the context of evolving energy demands and the push for sustainable power systems. This article outlines the working principle, design, and applications of new energy transformers.

Basic Principle of Operation

             At the core of every transformer, whether for traditional or renewable energy applications, is the electromagnetic induction principle discovered by Michael Faraday. Transformers consist of two coils (primary and secondary) wrapped around a magnetic core. When alternating current (AC) flows through the primary coil, it generates a magnetic field, which induces a voltage in the secondary coil. The voltage ratio between the primary and secondary coils is determined by the turns ratio, which is the number of coils in the primary coil relative to the secondary coil.

             In the case of new energy transformers, this fundamental principle is applied to handle the unique characteristics of renewable energy sources, such as fluctuating power generation and variable voltage levels.

Step-Up and Step-Down Transformers

             The primary function of any transformer is either to step up or step down the voltage level. In new energy applications, the need for both types is critical:

• Step-up transformers are used to increase the voltage from the energy generation point (such as solar panels or wind turbines) to a higher voltage suitable for transmission over long distances. This is necessary to minimize energy loss during transmission.
• Step-down transformers decrease the voltage to a lower, usable level for distribution and end-user consumption. This process ensures that electricity is at a safe voltage for homes, businesses, and industries.

               For example, a solar power plant often uses a step-up transformer to boost the generated voltage from 400V to 110kV or higher, depending on the transmission distance.

Special Considerations for New Energy Systems

             Renewable energy sources like solar, wind, and hydro are characterized by their variability. This variability can affect voltage levels and frequency, which poses challenges in integrating these sources into the existing grid. Here’s how new energy transformers are designed to address these challenges:

1. Variable Voltage and Frequency Regulation: New energy transformers are equipped with specialized voltage regulators that can adjust the output to match the grid’s requirements. These regulators compensate for fluctuations caused by varying solar intensity, wind speeds, or changes in load, ensuring a stable supply of power.
2. High-Efficiency Designs: Given the need for energy efficiency in modern power systems, new energy transformers are designed with low core losses, reduced heating, and high efficiency. Materials like amorphous steel are often used for the core, which minimizes eddy current losses and improves overall transformer performance.
3. Integration with Power Electronic Devices: New energy transformers often work in conjunction with power electronic devices like inverters and converters. Inverters, for instance, are used in solar power systems to convert DC power into AC power, while converters adjust the frequency and voltage. The transformer helps ensure that the output from these devices is appropriately conditioned for transmission or distribution.
4. Grid Stability and Power Quality: New energy transformers contribute to the stability of the grid by ensuring that the power provided is of high quality. This includes controlling harmonic distortions, which can arise from non-linear loads in renewable energy systems. Transformers with advanced filtering mechanisms help maintain the integrity of the electricity supplied to the grid.

Materials and Design Features

            The design of new energy transformers is highly specialized. The most common materials used in their construction include:

• Core Material: The core is typically made from laminated silicon steel or amorphous steel, which are both chosen for their low core loss properties. Amorphous steel, in particular, is known for its energy efficiency, reducing core losses and heat generation, which is especially important in applications involving high-frequency switching.
• Windings: Windings are usually made from copper or aluminum. Copper windings offer lower resistance and higher efficiency, though they are more expensive. Aluminum is used in some cases due to its lighter weight and lower cost, though it has higher resistance compared to copper.
• Cooling Systems: Cooling is critical in transformers, especially those used in renewable energy applications where load fluctuations can cause temperature variations. Transformers are often equipped with oil or gas cooling systems to dissipate heat generated during operation, maintaining optimal performance and preventing overheating.
• Insulation: Insulation materials used in new energy transformers must be able to withstand higher temperatures and maintain their dielectric strength over time. Modern transformers often use advanced composite insulation materials, which provide enhanced durability and resistance to environmental factors.

Applications in Renewable Energy

             New energy transformers are used in a variety of renewable energy applications, particularly in the integration of solar, wind, and hydroelectric power systems into the national grid.

• Solar Power Systems: Solar farms require step-up transformers to increase the voltage of the power generated by photovoltaic (PV) panels before it is fed into the grid. These transformers must handle the variable output of solar power, which fluctuates depending on sunlight intensity and cloud cover.
• Wind Power Systems: Wind turbines generate power at a relatively low voltage. Step-up transformers are used to increase the voltage for efficient transmission to the grid. The operation of wind turbines is subject to the variability of wind speed, so transformers in wind farms must be capable of handling these fluctuations.
• Hydropower Systems: Hydroelectric power plants, whether large-scale dams or smaller run-of-river plants, also rely on transformers for voltage regulation and power conditioning. These transformers must be designed to accommodate both the stable output of hydropower plants and the need for efficient transmission over long distances.

Conclusion

              New energy transformers play a crucial role in ensuring the efficient and stable integration of renewable energy sources into the power grid. Through advanced design features and materials, they address the challenges posed by fluctuating energy production and the need for high-efficiency transmission and distribution. As the world continues to transition toward renewable energy, the importance of these transformers will only grow, helping to support a sustainable and reliable power grid.
